Concepts

A short tour of the building blocks exposed by the public REST API. If you’ve used a visual workflow tool before, most of this will be familiar.

Workflows

A workflow is a saved graph of nodes connected by edges. Think of it as a function: it takes inputs from a Request Node, runs them through one or more processing nodes, and emits results from a Response Node.

User workflows

Workflows you create and edit in the Magica app. Public REST can estimate credits and start workflow runs by workflow ID or system workflow slug.

System workflows

Pre-built templates Magica ships (e.g. “Nano Banana Pro”, “Flux 2 Pro”). Read-only — list with GET /v1/system-workflows.

Nodes

A node is a single step in a workflow. Two special scaffold nodes exist in every workflow:

Request Node

Defines workflow inputs. Each input field has a name, type, and optional default value. Values submitted from the UI or internal execution services populate these fields.

Response Node

Defines workflow outputs. Whatever gets wired into the Response Node is what the run returns.

Between Request and Response, you add processing nodes — image generators, LLMs, video models, audio, utilities. Each node belongs to a category:

Category	Examples
Image	Flux 2 Pro, Nano Banana Pro, GPT Image 1.5
Video	Runway, Kling, Veo
Audio	TTS, music generation, sound effects
LLM	GPT-5, Claude Sonnet, OpenRouter models
Utility	Merge videos, extract audio, transcription

Scaffold nodes (Request, Response) cannot be deleted. All other nodes can.

Ports & edges

Every node has typed input and output ports. An edge is a connection between an output port on one node and an input port on another.

RequestNode.prompt  →  flux_2_pro.prompt        (text → text)
flux_2_pro.result   →  gpt_5.image_urls         (image → image)
gpt_5.output        →  ResponseNode.result      (text → any)

Edge creation is validated by the server:

Type compatibility — image ports can’t feed into text-only inputs.
No cycles — workflows are DAGs.
Single-input rule — most input ports accept exactly one upstream edge.

Port types: text · image · video · audio · avmedia · file · number · boolean · select · any.

Run history

A run is a single execution of a workflow or model. Public REST exposes run creation and lookup endpoints for model runs and workflow runs.

States

RUNNING → terminal: COMPLETED, FAILED, or CANCELED.

Get the result

Use GET /v1/nodes/runs/{runId} for standalone model runs, and GET /v1/runs/{runId} for workflow runs.

Run result shape

{
  "runId": "cuid_abc123",
  "status": "COMPLETED",
  "response": { /* Response Node output */ },
  "nodes": [
    { "nodeId": "...", "type": "flux_2_pro", "status": "COMPLETED", "output": { ... } },
    { "nodeId": "...", "type": "gpt_5",      "status": "COMPLETED", "output": { ... } }
  ]
}

The response field surfaces what the Response Node received — usually the only thing you need. nodes gives per-step status + output, useful for debugging partial failures.

Run history in the UI

API-visible runs are surfaced in the same dashboard your UI runs land in. Use this to debug a failing run, inspect a past result, or copy a runId you forgot to log. Two places to find it:

Workflow editor
Node / workflow playground

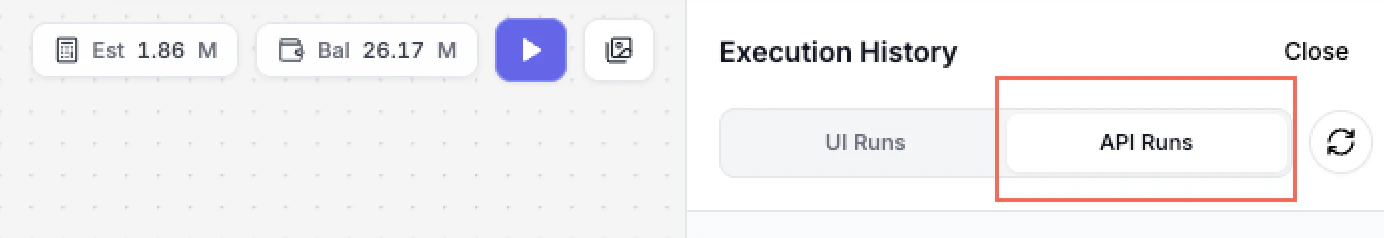

Open any workflow on the canvas and click the clock icon in the top toolbar to slide out the Execution History panel. Switch to the API Runs tab to filter to runs started via the REST API or MCP server.

Execution History panel showing API Runs tab with completed runs and credits

The API Runs tab is your friend during integration — it shows the exact runId, status, credits, and timestamp for every supported API-visible call, side-by-side with the UI runs your team kicked off manually.

Webhooks

Webhook delivery is used by execution surfaces that support asynchronous run callbacks. Deliveries are signed (HMAC-SHA256) and retried with exponential backoff. Full details are on the Webhooks page. For public REST clients, keep webhook receivers ready to validate signatures and handle retries idempotently.

Credits

Each run debits credits from your account. Costs depend on the model and parameters used (resolution, duration, etc.).

GET /v1/credits/balance — current balance
GET /v1/models/catalog — model list with cost structure
GET /v1/models/{modelId}/pricing — pricing details for one model
POST /v1/nodes/estimate-credits — estimate model/node-shaped payloads
POST /v1/workflows/estimate-credits — estimate workflow-shaped payloads
Canceled runs refund unused estimated credits

When working in MCP, the get_balance and get_pricing tools surface the same information to your AI assistant before kicking off expensive jobs.

How it all fits together

Discover a model

Use GET /v1/models or GET /v1/models/search to choose a model ID.

Inspect schema and pricing

Fetch GET /v1/models/{modelId}/schema and GET /v1/models/{modelId}/pricing before building client forms.

Estimate credits

Use POST /v1/nodes/estimate-credits or POST /v1/workflows/estimate-credits before starting expensive jobs.

Start and poll runs

Use POST /v1/nodes/{nodeType}/run for a standalone model run, or POST /v1/runs for a workflow run.
